Overview

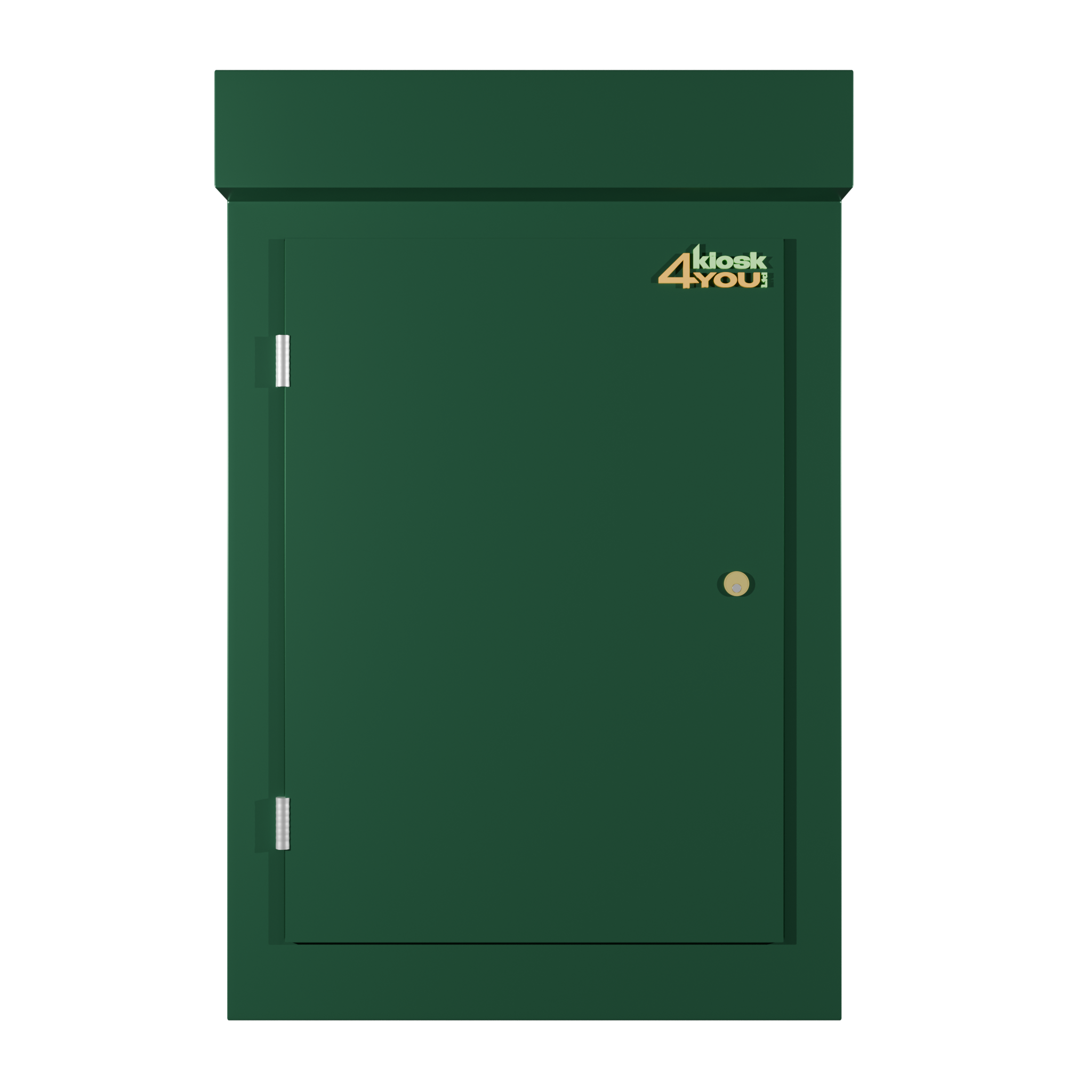

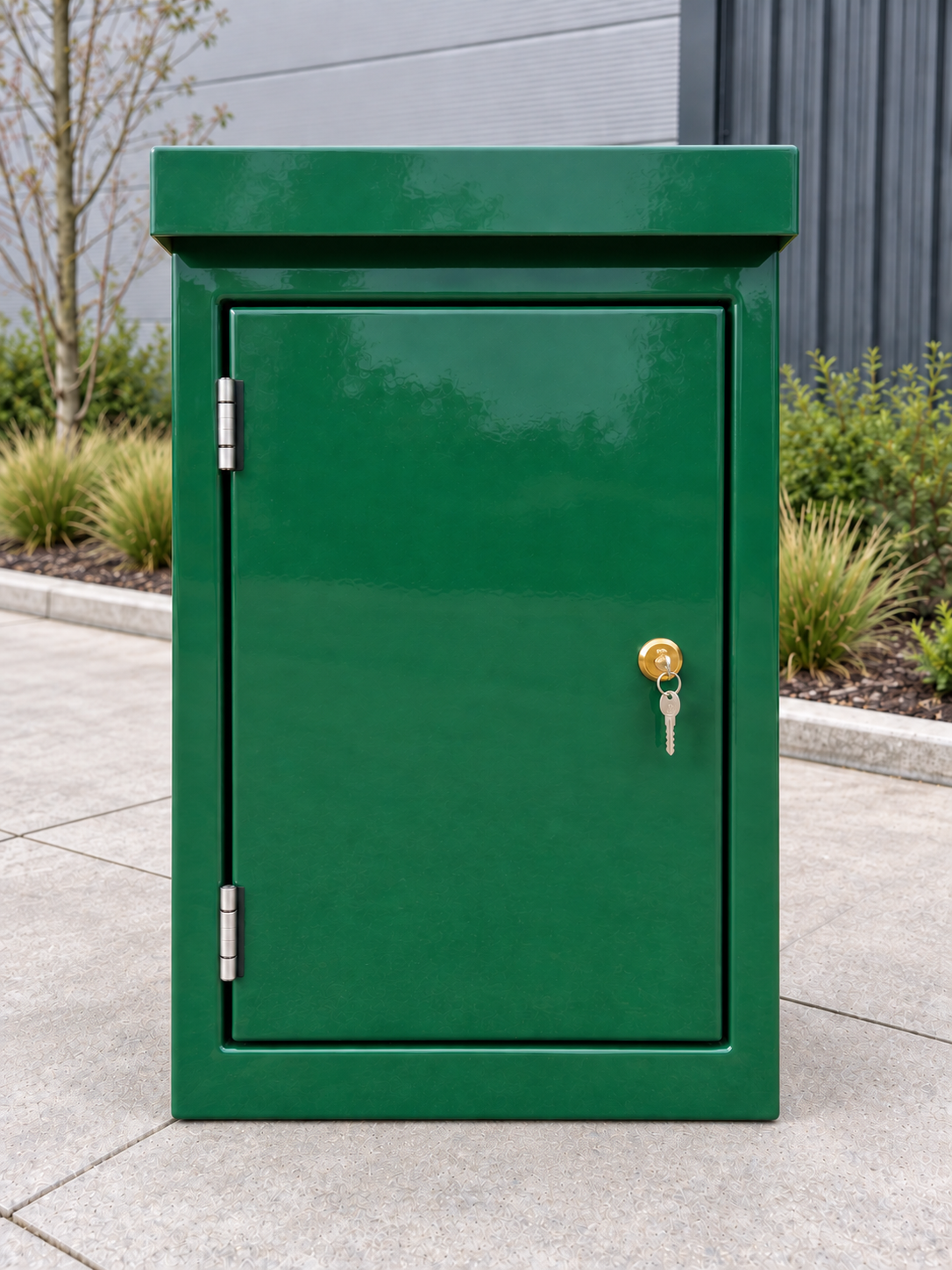

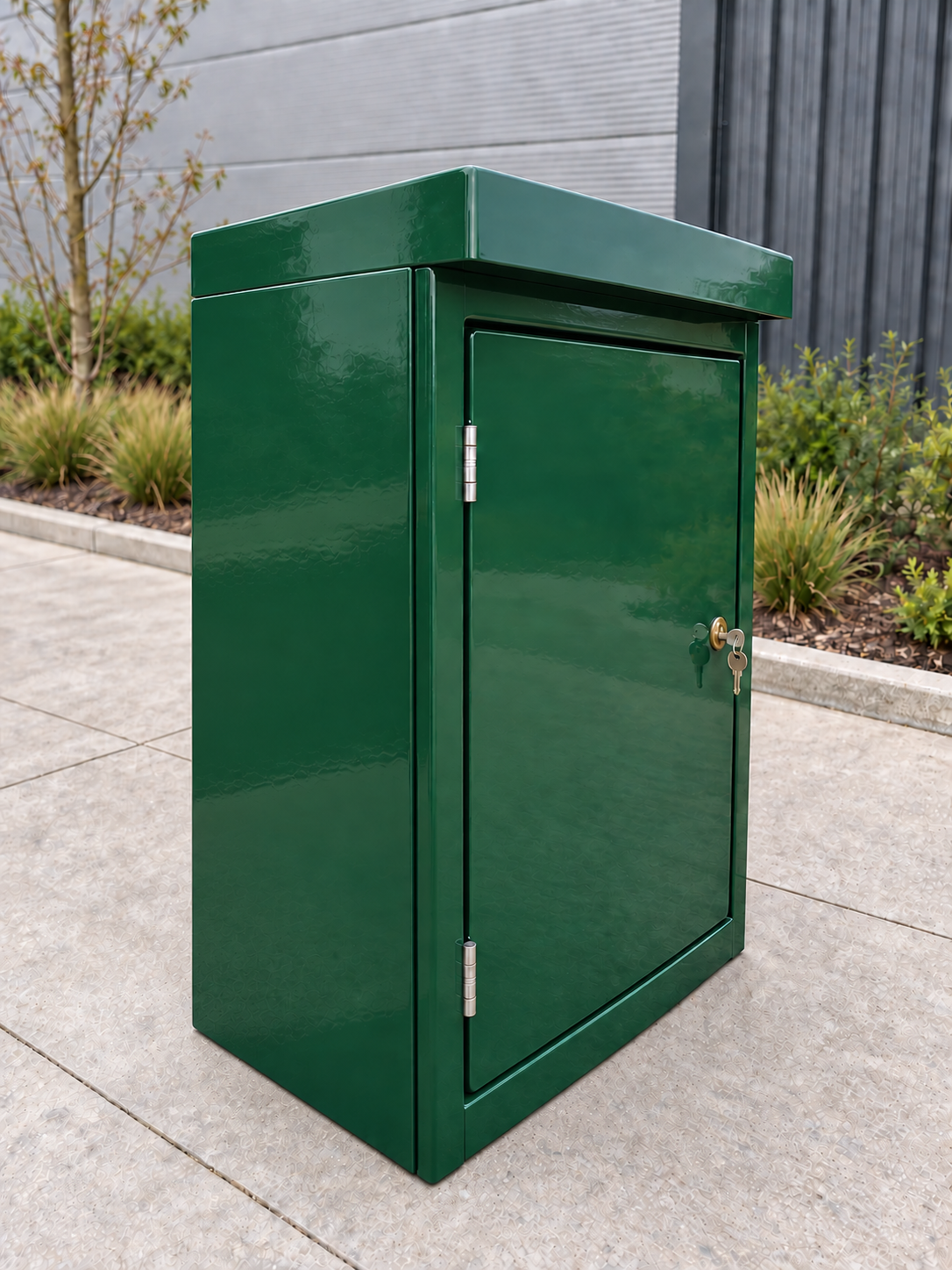

The T1 Electrical Box delivers dependable protection for small electrical and control systems. Compact yet practical, it is a preferred option for engineers who need robust performance, security, and straightforward installation across residential, commercial, and light industrial sites.
Built for the British Climate
Every T1 enclosure is manufactured from high-grade Glass Reinforced Plastic (GRP), strengthened with 300,450 gsm Chopped Strand Mat (M705) and bonded using CrysticROOF resin. This construction provides excellent strength, impact resistance, and long-term durability.
The exterior is finished with marine-grade Crystic® GT-600 gelcoat in BS226 Green. It protects against UV rays, rain, frost, and airborne pollutants, helping the enclosure remain stable, weatherproof, and colour-true for years in UK conditions.
Security and Durability
The door system includes a Yale 77 Traditional Nightlatch with a 5-pin cylinder and deadlock function for primary protection, supported by a stainless-steel slide latch for additional security. ZOO ZHSS232 stainless-steel hinges provide smooth, reliable operation, while Scapa 3259 foam tape creates a tight seal to help prevent water and dust ingress.
Professional Interior Layout

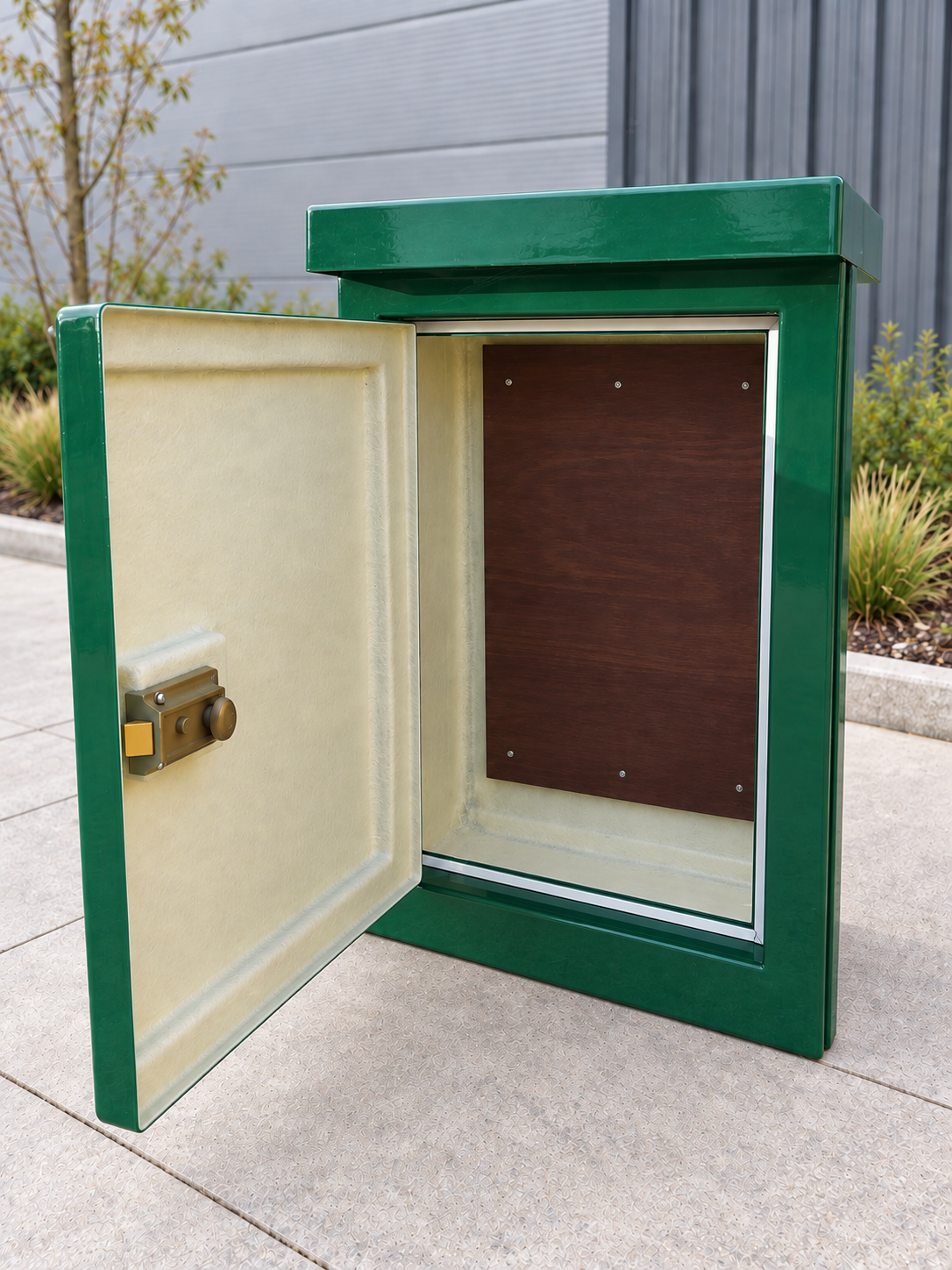

Internally, the box is fitted with a 12 mm ALPHAPLY plywood mounting board for stable equipment installation and reduced vibration. The walls are lined with 3.6 mm eucalyptus-faced poplar core plywood, offering a clean, paintable surface that improves visibility and supports neat cable and component layout.
Typical Applications
- Consumer units and small distribution panels
- Telecommunications or compact control systems
- Metering, monitoring, and sensor enclosures
- Residential and commercial power junctions
- Wall- or plinth-mounted installations where compact depth is required
Key Features
- Compact format: 840 × 570 × 310 mm
- BS226 Green gelcoat for UV stability and weatherproof protection
- Dual locking: Yale 77 nightlatch plus stainless slide latch
- Sealed closure using Scapa 3259 foam tape (3 mm)
- Strong GRP construction with marine-grade resin and reinforcement
- Professional interior: mounting board and smooth internal lining
- Low maintenance, corrosion-resistant, and non-conductive design
Why Choose the T1
- Designed for British site conditions and outdoor use
- Certified materials suitable for marine and industrial environments
- Cost-effective long service life with minimal upkeep
- Simple wall or plinth installation
- Ideal for engineers, contractors, and utilities professionals
